QF Series--Creative Outdoor LED Panel

  • Outdoor fine pitch
  • Front access
  • Modularization,support creative sesign
  • Seamless right-angle corner
  • Waterproof module,IP65,
  • Configurable cabinet
  • External power box choice
  • Certificates:CE/ETL
  • Description

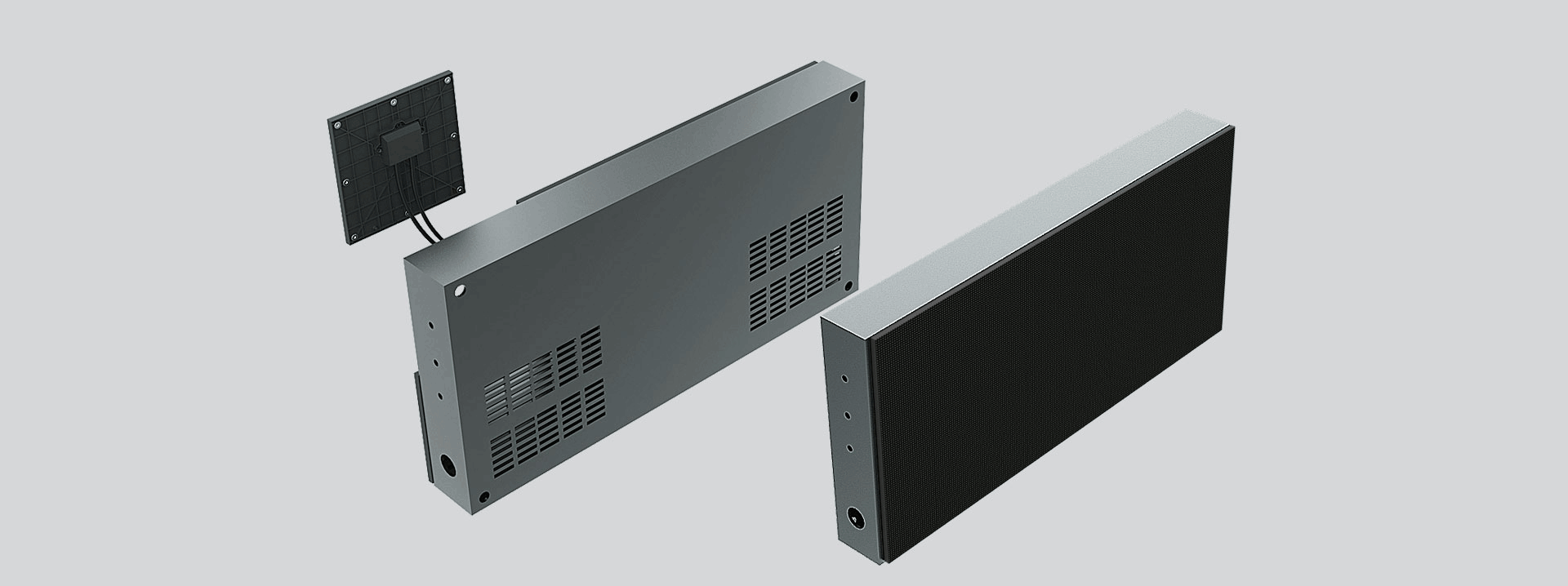

01.pngSeamless Right-corner Module

Modular Cubic Splicing

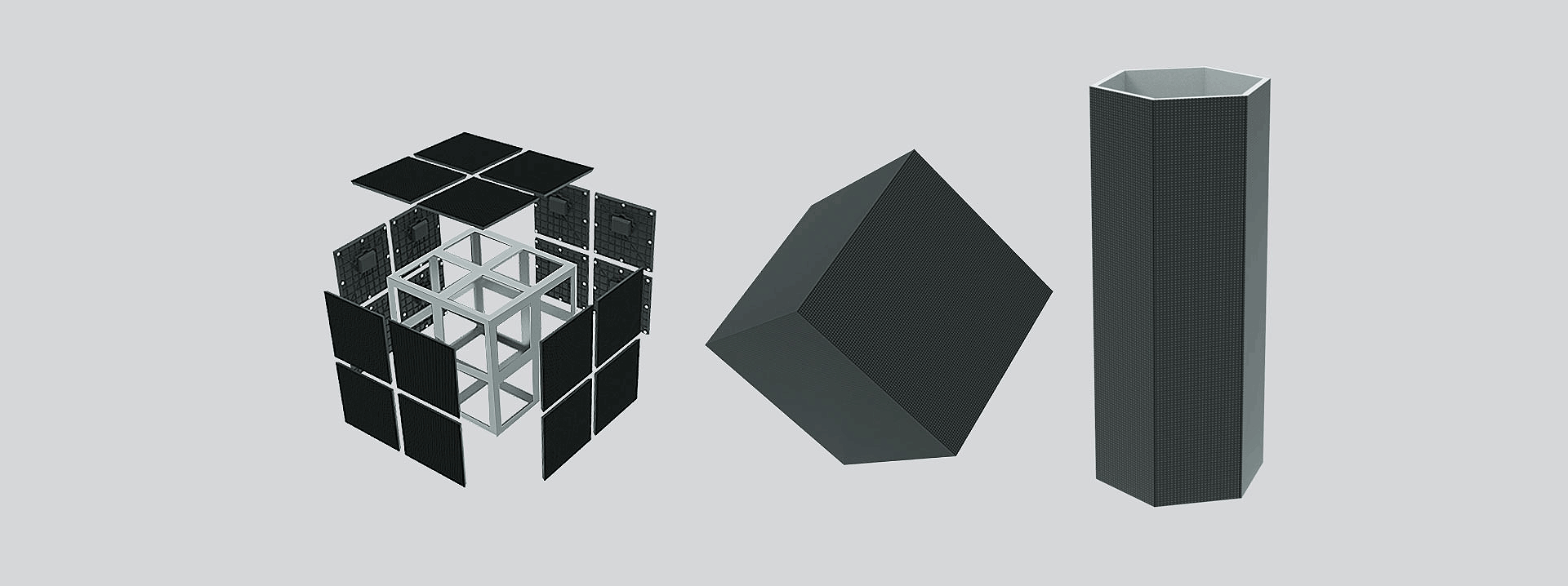

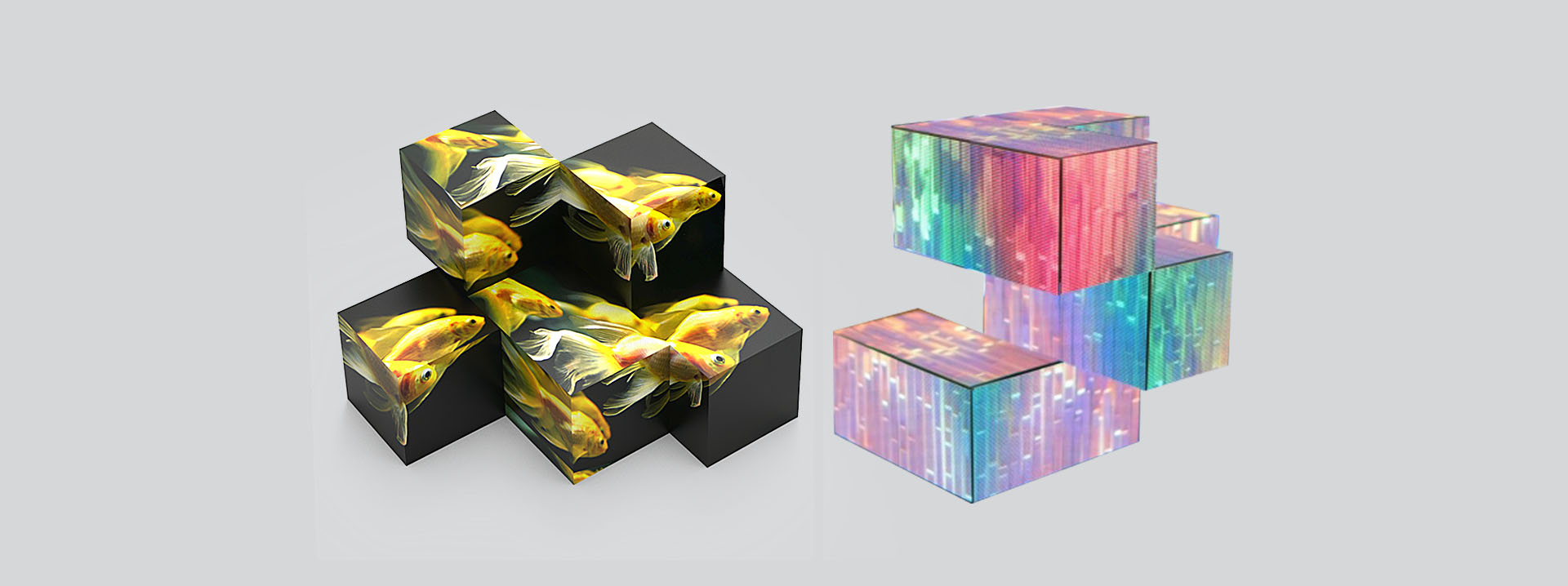

02.pngWireless Creative Design

Designed for Square, Hexagon, Octagon ...

Support Flat & Solid Geometry Construction


03.pngCabinet Size Customization

The module can be configured withcabinets of different sizes

Simple Cabinet Configuration

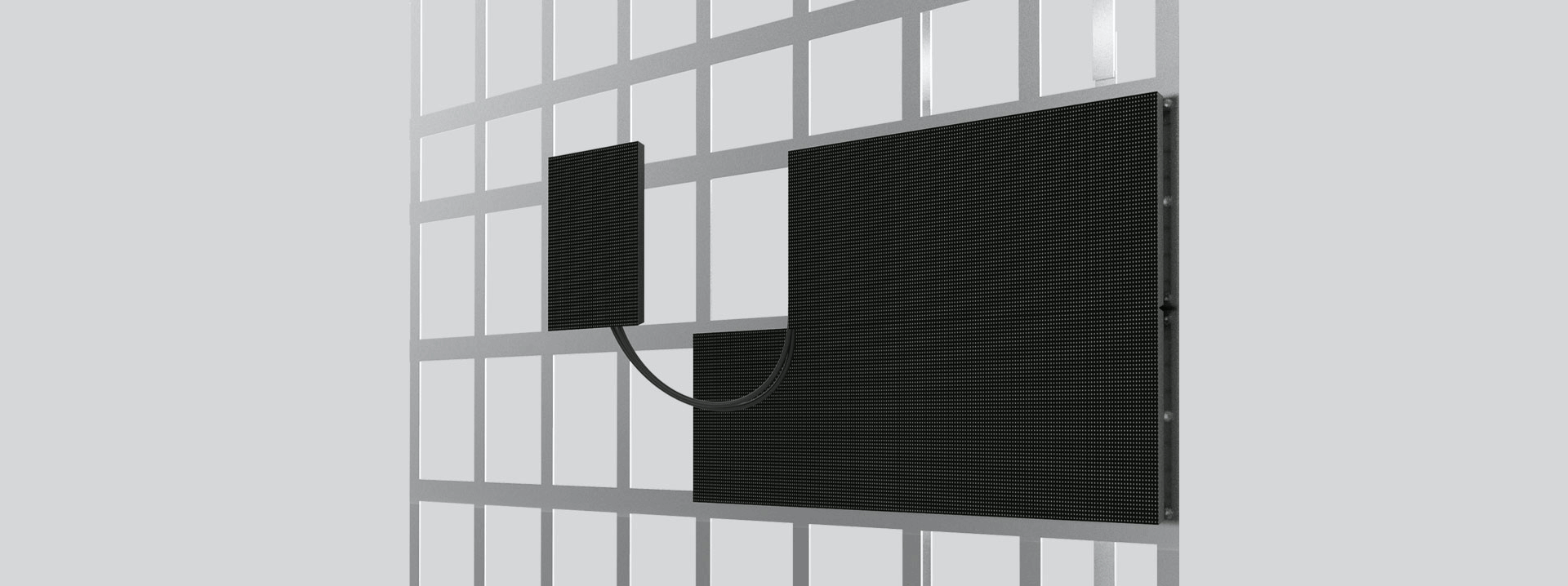

04(5acb8db5f0).pngMagnetic Module

The magnetic module makes simpler installation and labor cost saving


Parameters:

Model number Unit QF2.6 QF2.9 QF3.9
Pixel pitch mm 2.604 2.976 3.906
luminance nits 4500 5000 5000
Case size mm 1000*500*120
Box pixel matrix 384x192 336x168 256x128
Panel material  Aluminum
Panel weight Kg 28
Protection level (front/rear) IP 66/66
Maintenance mode  front maintenance



Download Center:

Creative Outdoor LED Panel  QF Series supplierQF Series

Application:

Outdoor Corner Display

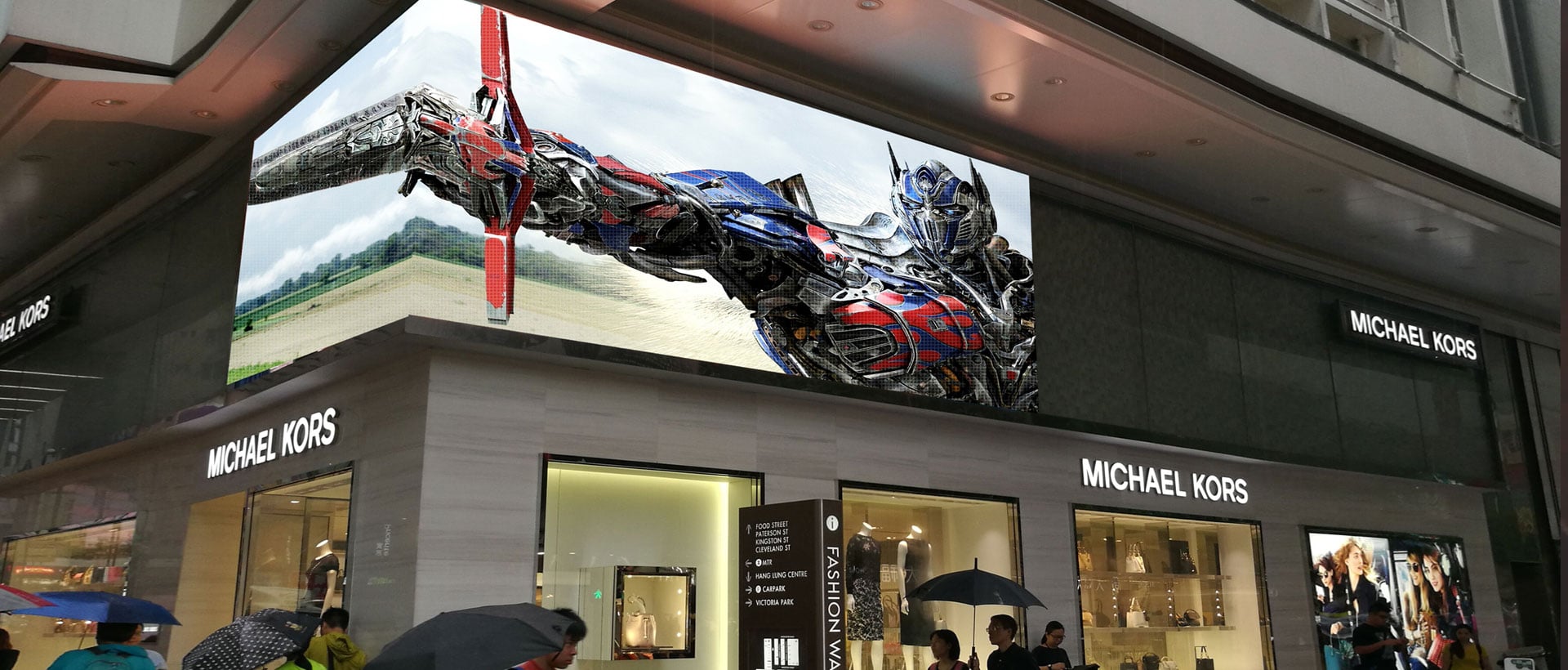

Application (2)Super Slim Hotel HallScreen

Application (3)

Sports Stadium Screen

Application (4)

Outdoor Arena Screen

Application (6)

Creative Screen

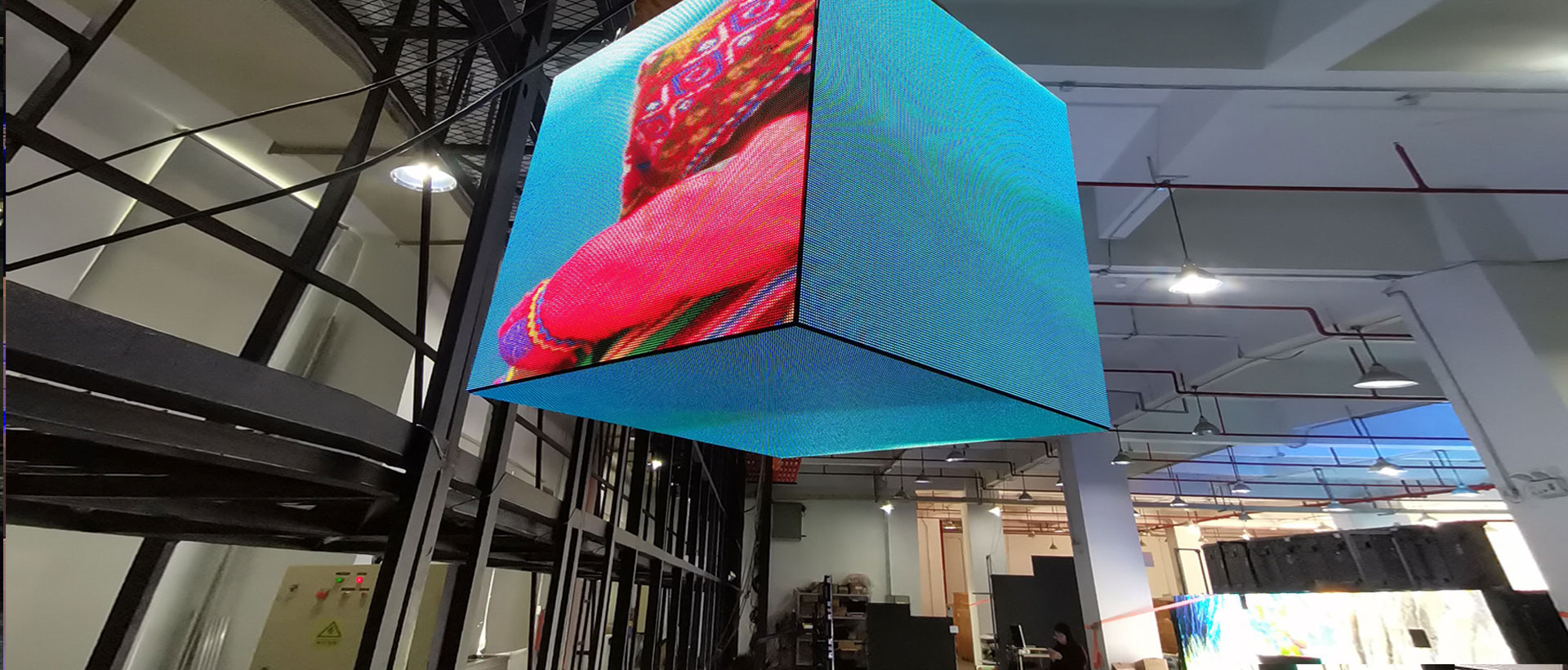

Application (1)

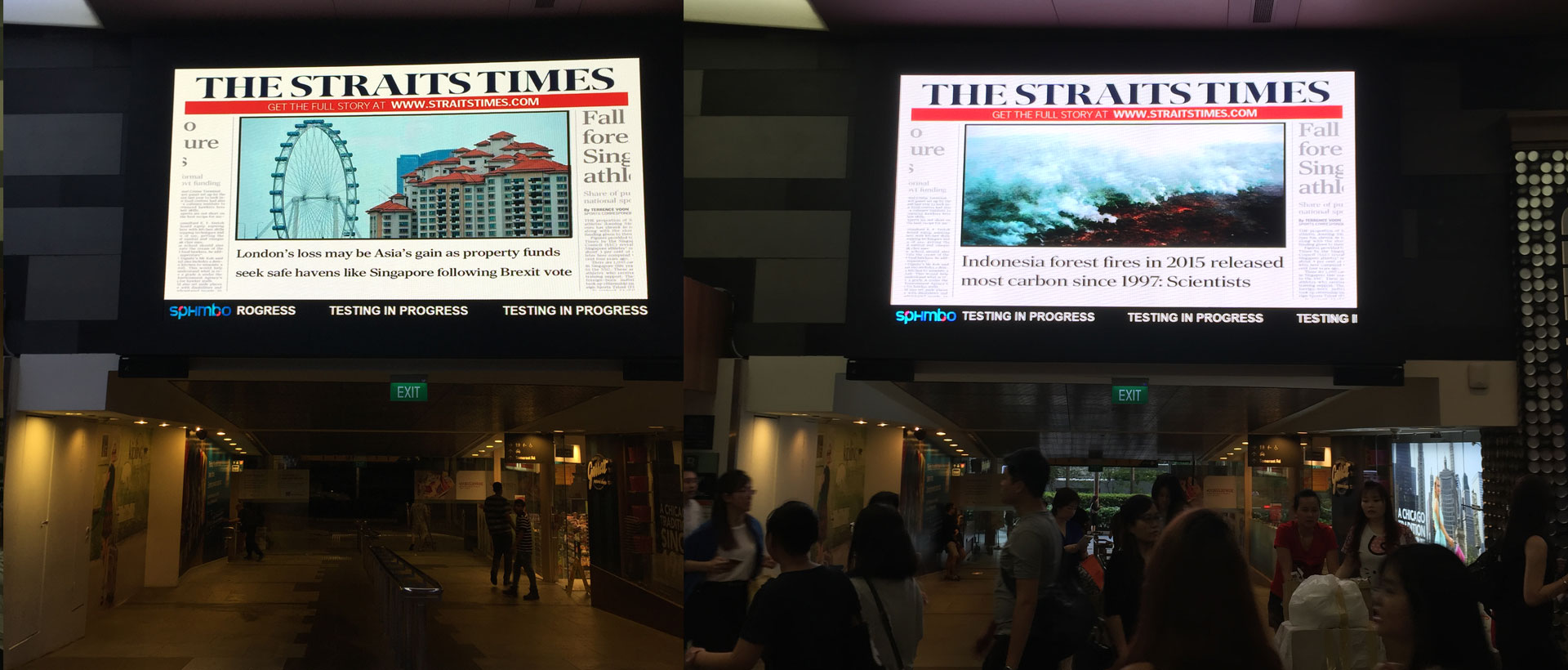

Application (5)
