iSlim Series

iSlim Series--Ultra slim LED Panel

Available pixels: 1.5mm/1.9mm/2.6mm/3.9mm
Ultra-thin: 38mm deep
Super light: 5.6kg/cabinet (500mm x 500mm)
Fully frontal maintenance
Invisible wiring design
Double safety design, fuse in modules and power design.

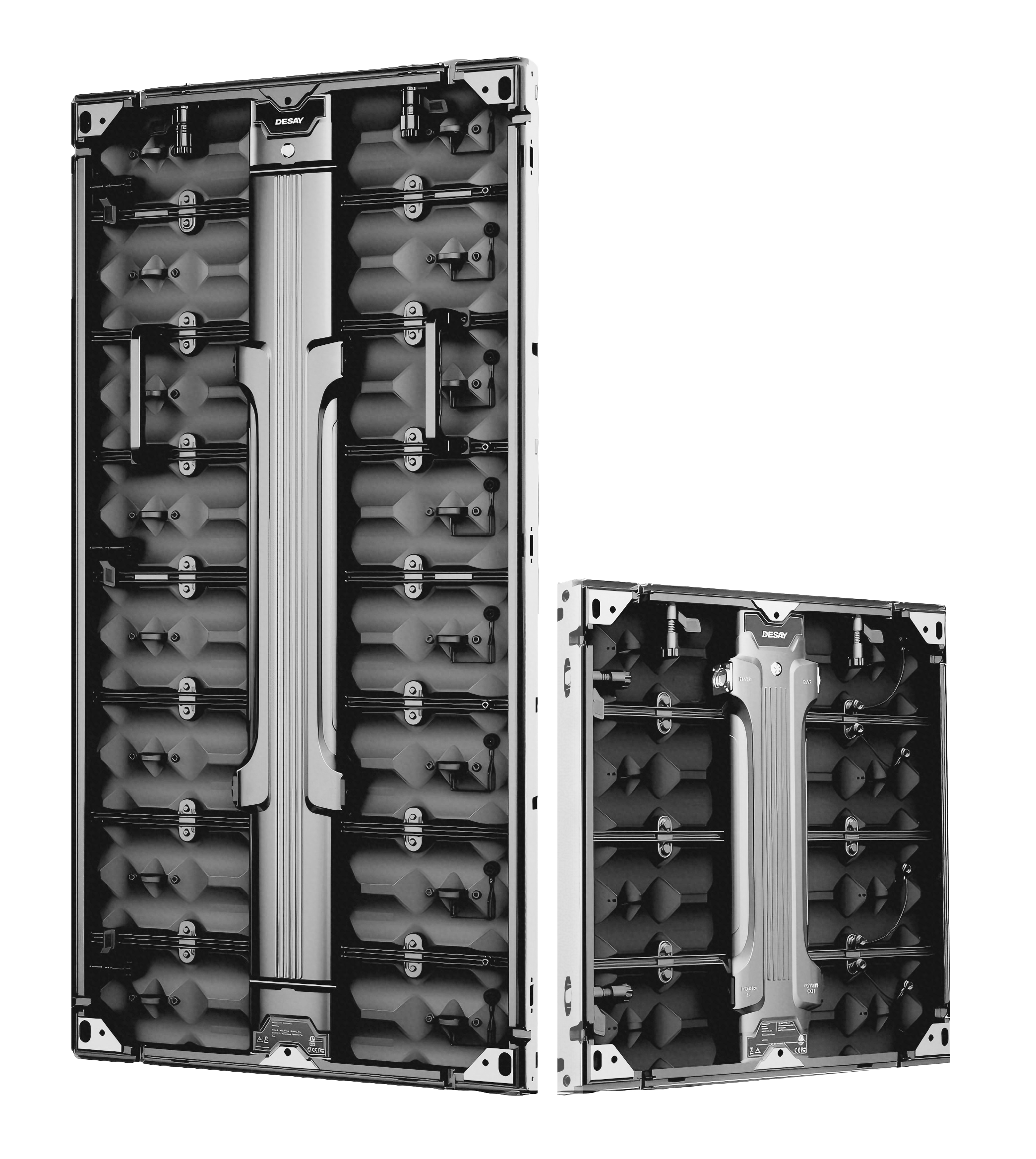

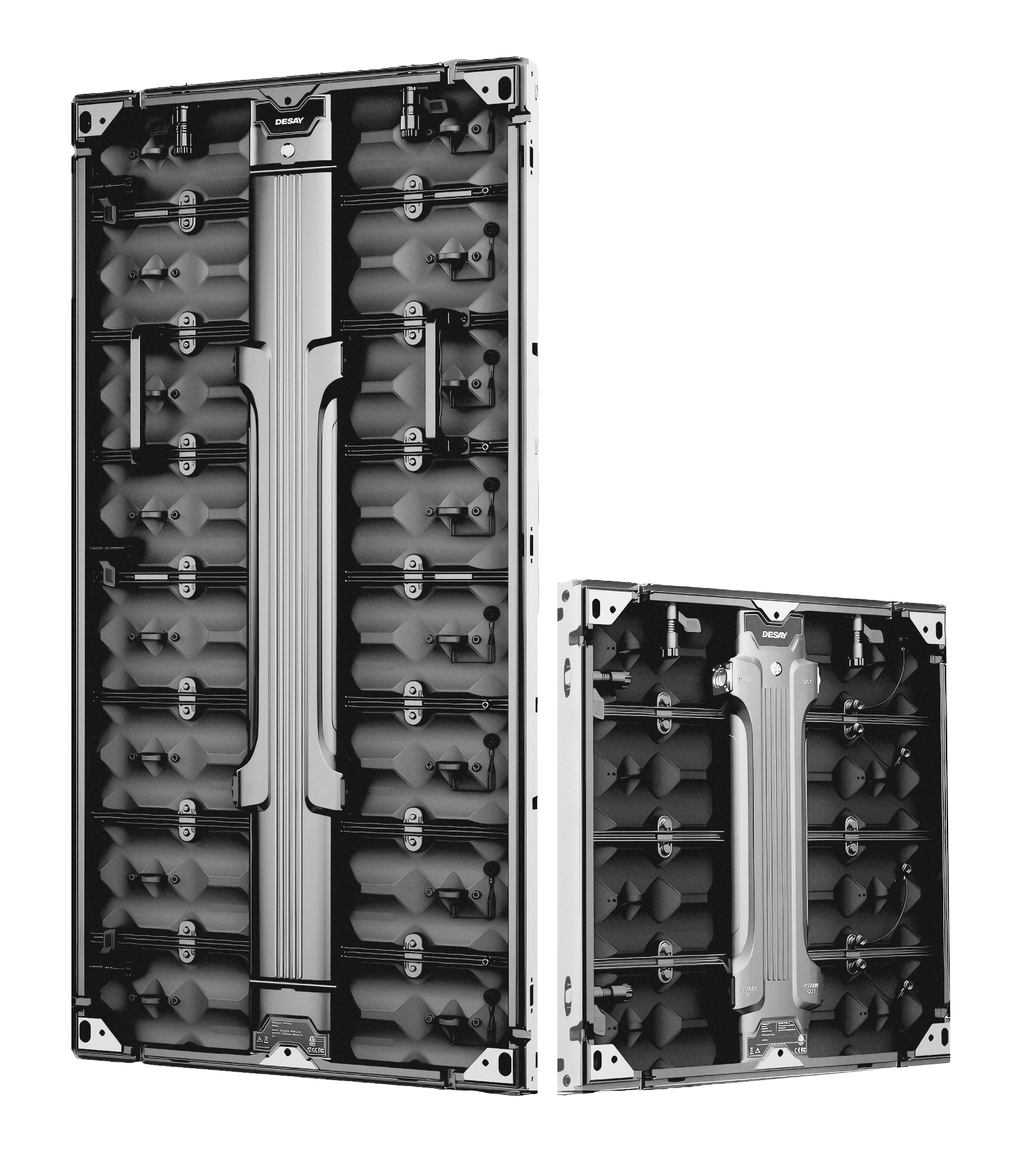

Optional cabinet size: 500mm*500mm, 500mm*1000mm，500*750mm
Double-sided installation，total depth only 80 mm
Multi-application: stackable, wall-mounted, hanging and stackable poster
Creative installation available: LED Banner, Led Pilar. LED cube, irregular shape splicing, etc.

Inquiry Contact Us Download PDF

Description

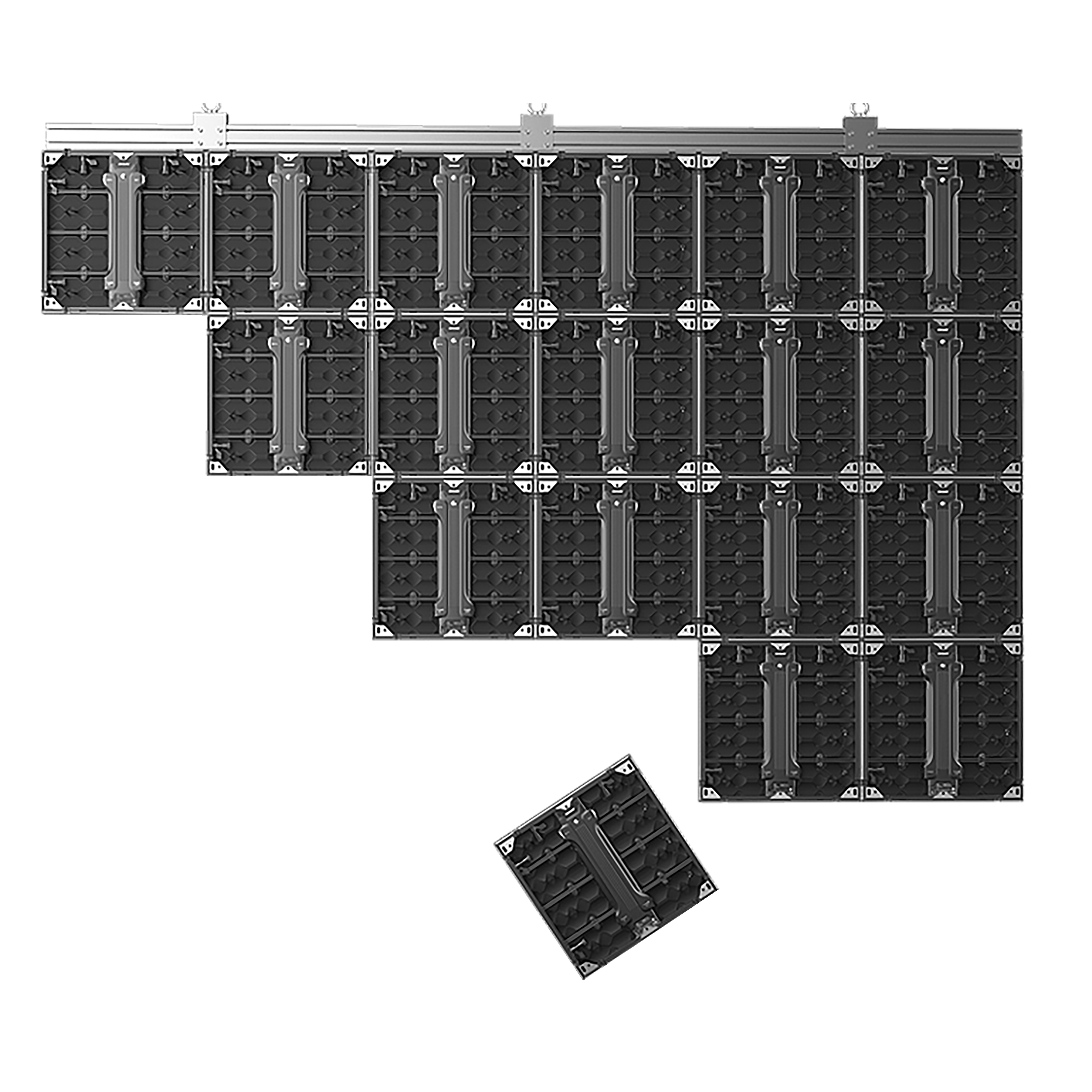

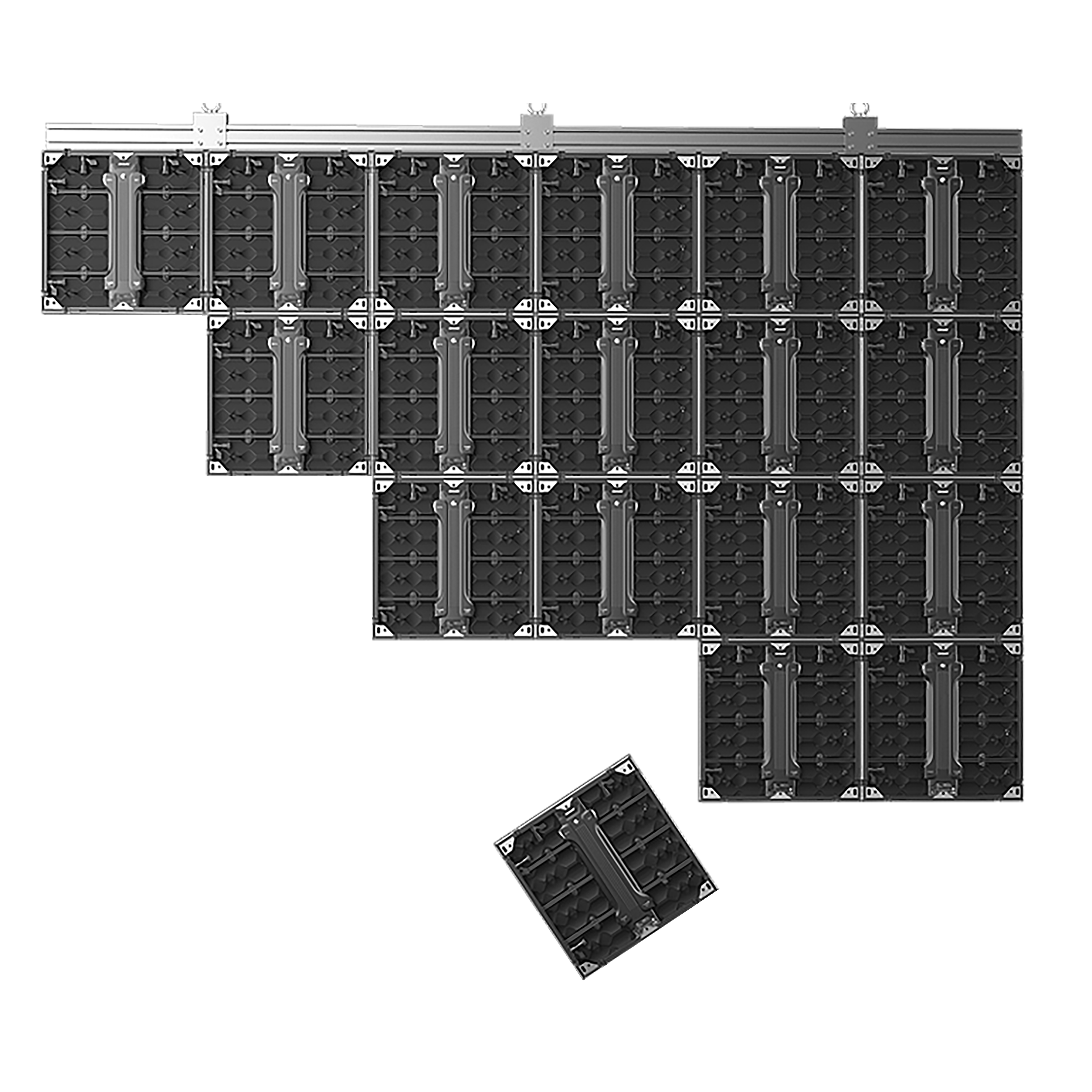

01(df4d8987f6).png Creative installation available

LED Banner, Led Pilar. LED cube, irregular shape splicing, etc.

3 (1).png

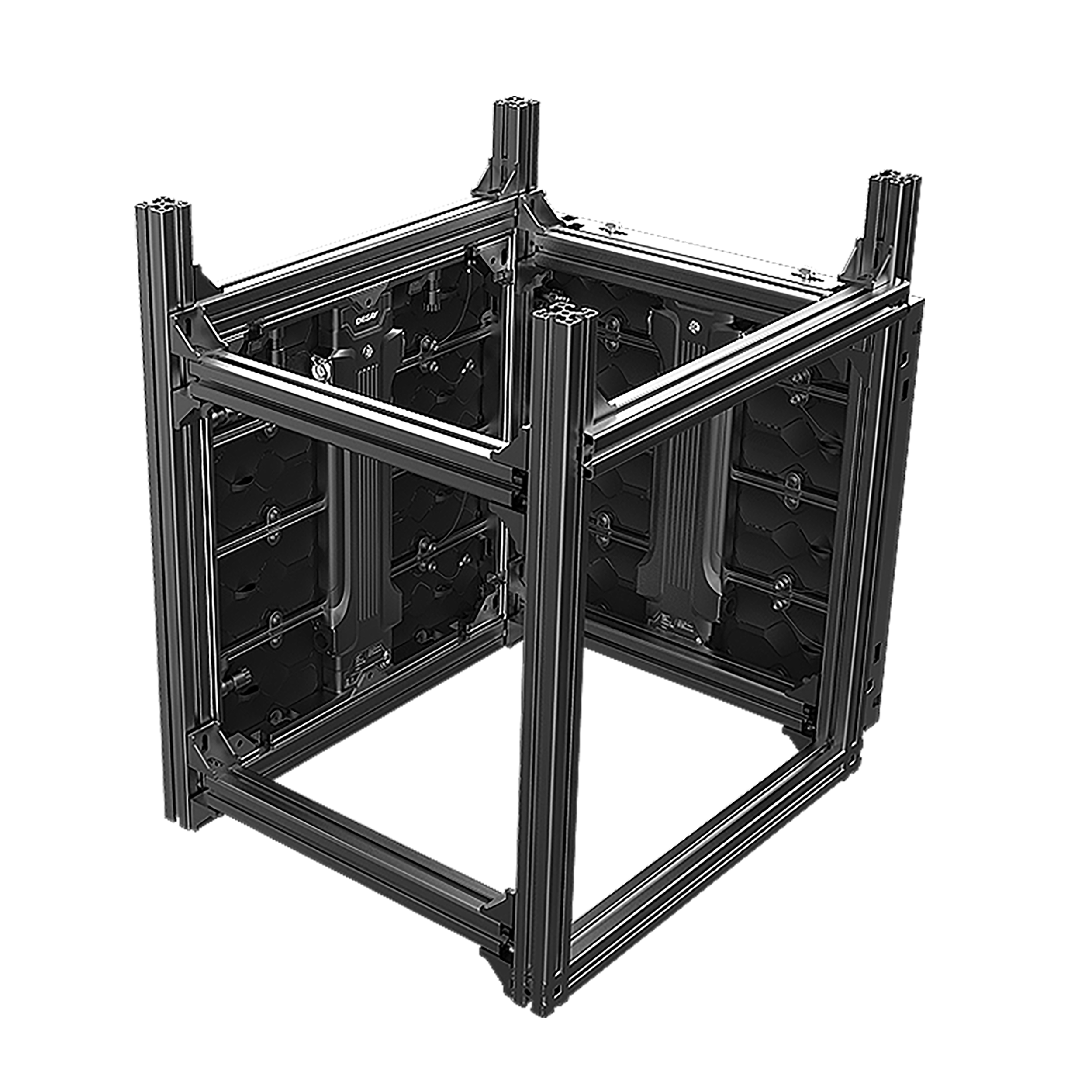

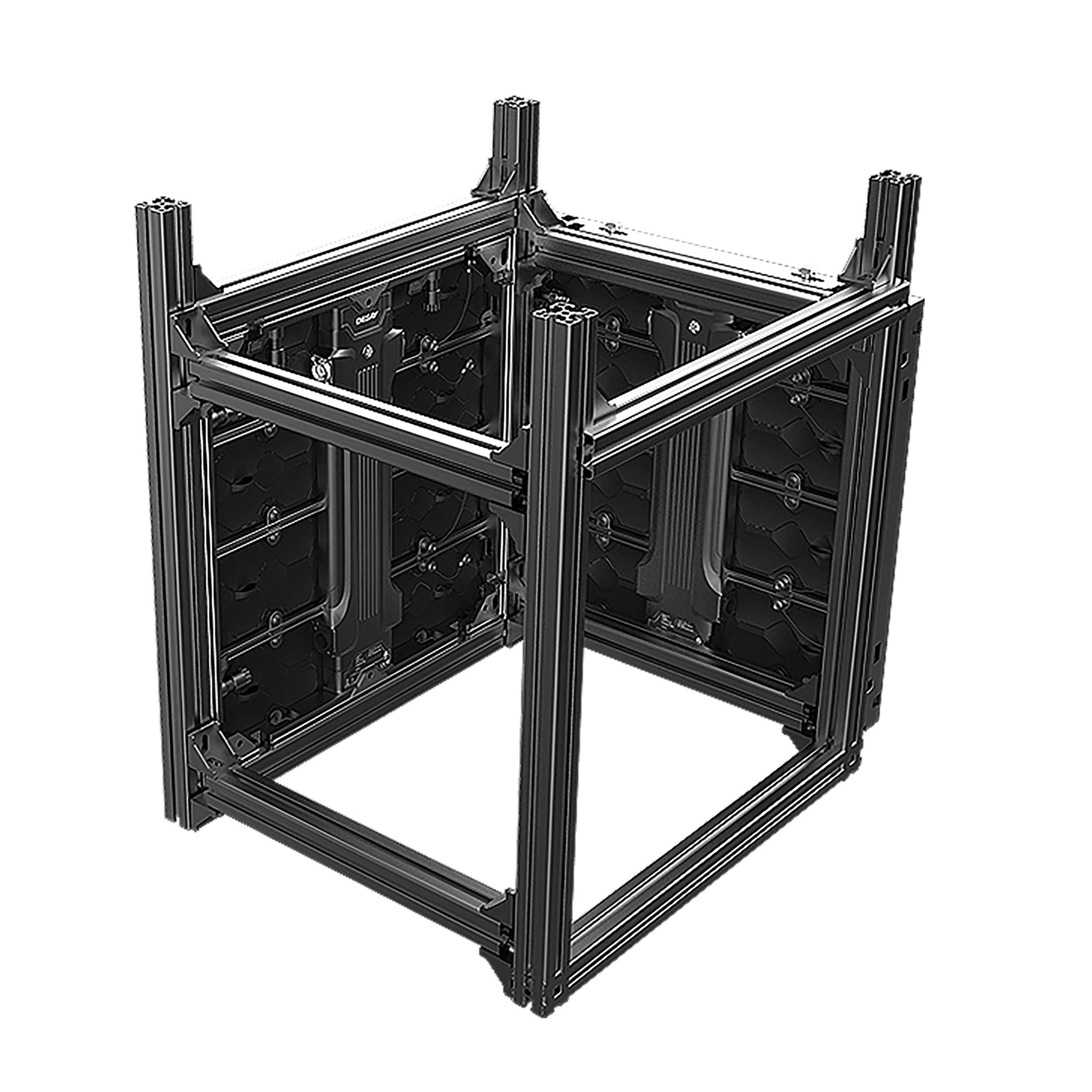

Perfectly matched with standard aluminium extrusion

40*40 and 40*80 aluminium extrusion matched

Multi-application

Stackable, wall-mounted, hanging and stackable poster

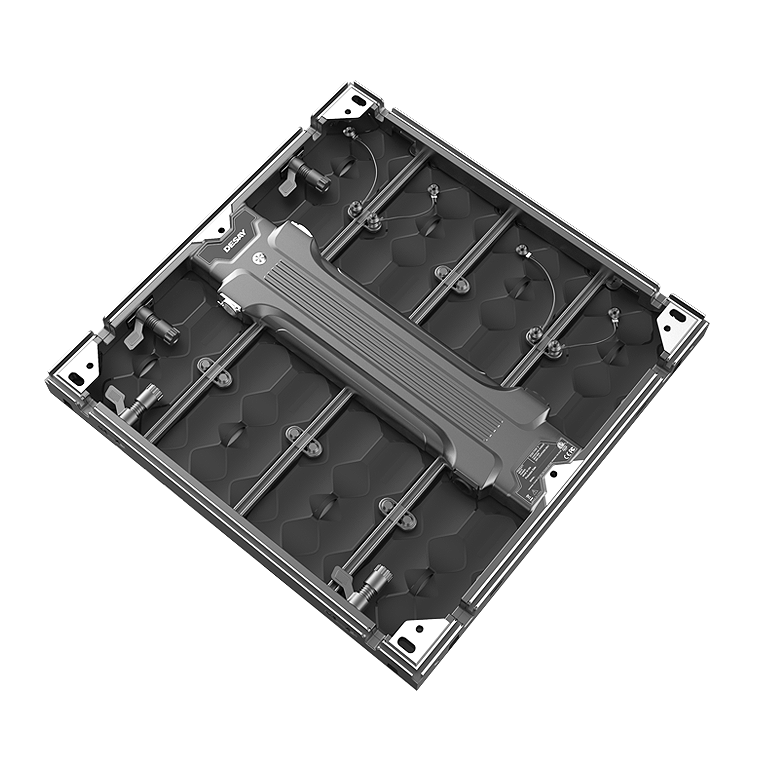

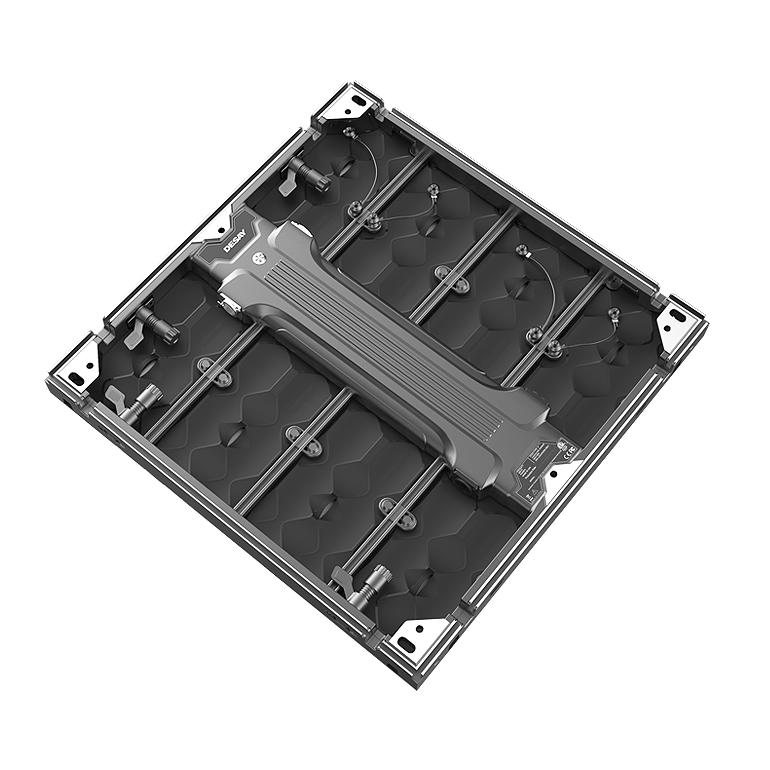

Invisible wiring design

5 (1).png

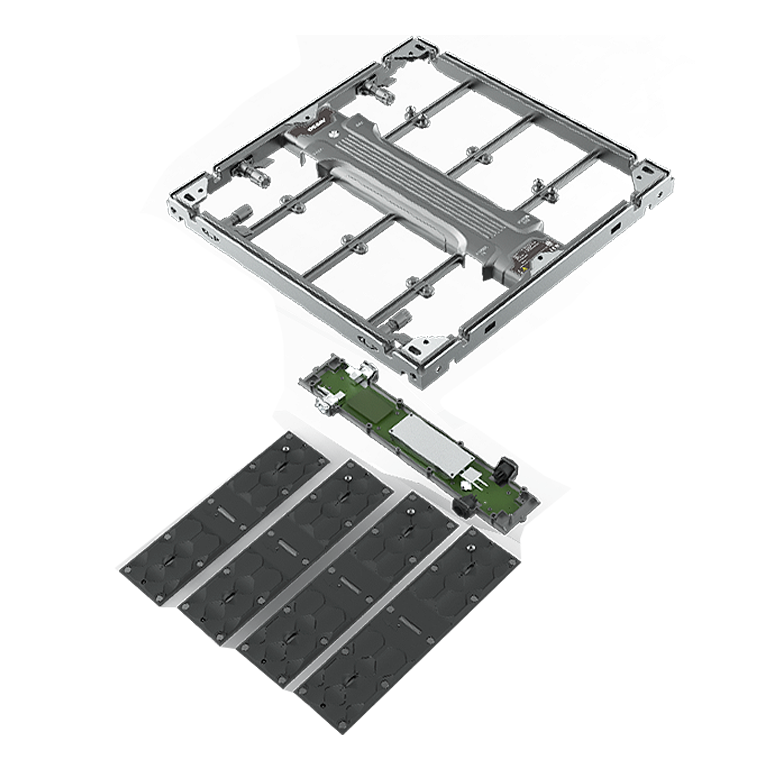

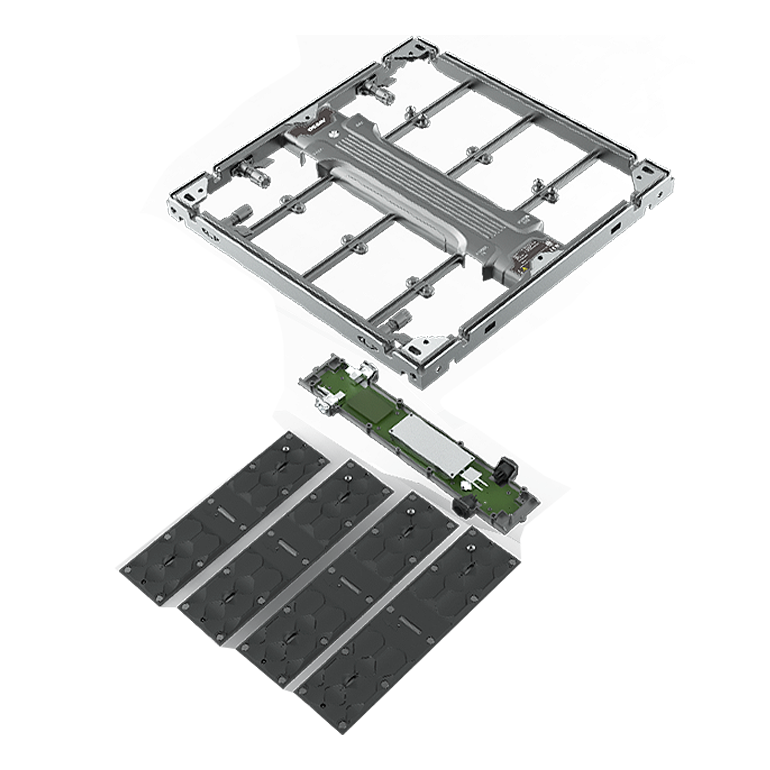

Quick to install and easy to operate

Fully frontal maintenance

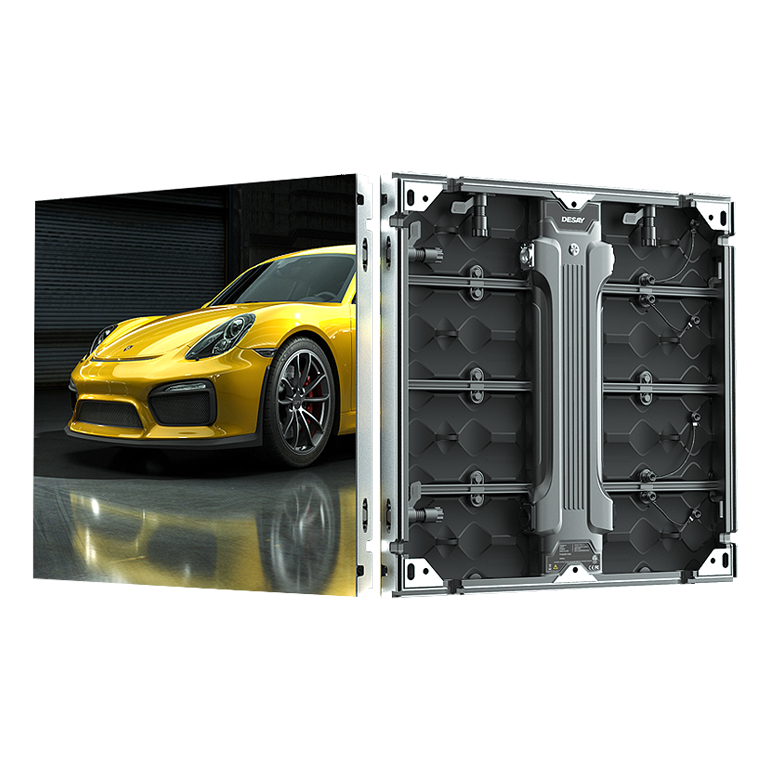

Right angle (90°) connection available

4 (1).png

Parameters：

Parameter		iSlim1.2	iSlim1.5	iSlim1.9	iSlim2.96	iSlim2.9	iSlim3.9
Pixel pitch	mm	1.25	1.563	1.953	2.604	2.976	3.906
Brightness	nits	800	800	800	1000	1000	1000
Panel size	mm	50050039		50050039/500100039
Pixel matrix per panel		400*400	320*320	256256/256512	192192/192384	168168/168336	128128/128256
Panel material		Aluminum
Panel weight	Kg	5.7/11
Ingress protection (front/rear)	IP	20/30
Maintenance		Full front maintenance
