Description:
Modular design

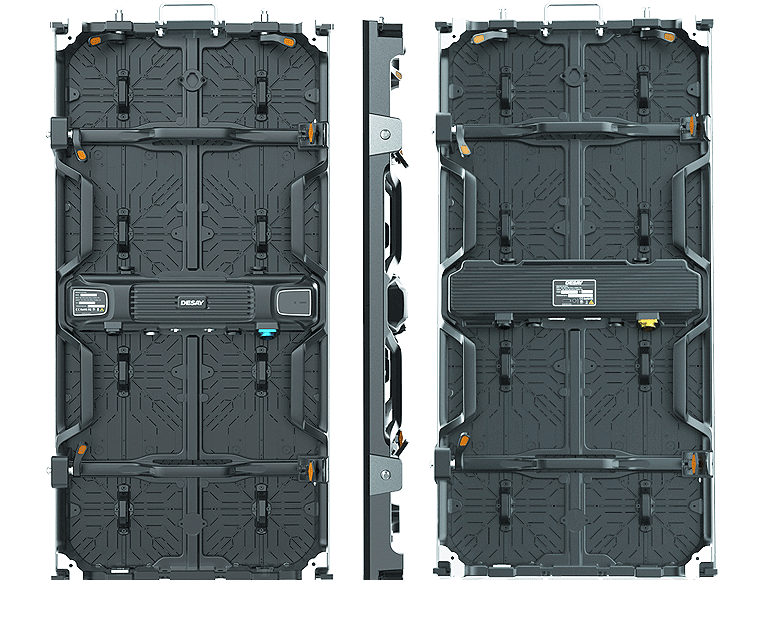

Front and rear access to modules and power boxes
Intelligent modules
500mm x 500mm/500mm x 1000mm panels compatible
Certifications：CE/FCC/UL/ROHS
Refresh rate：2880HZ

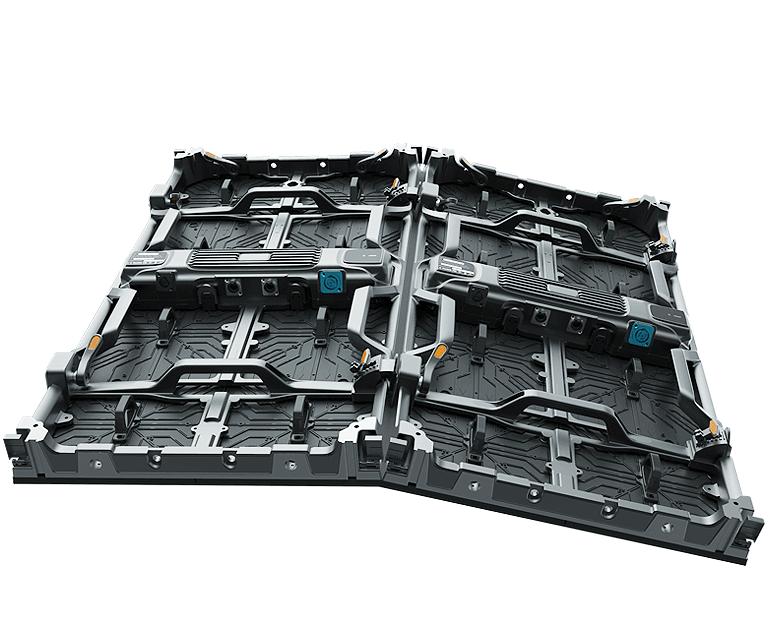

Concave and Convex Set Up:
Panels integrated with curve locks system
-10°~10° Concave and convex

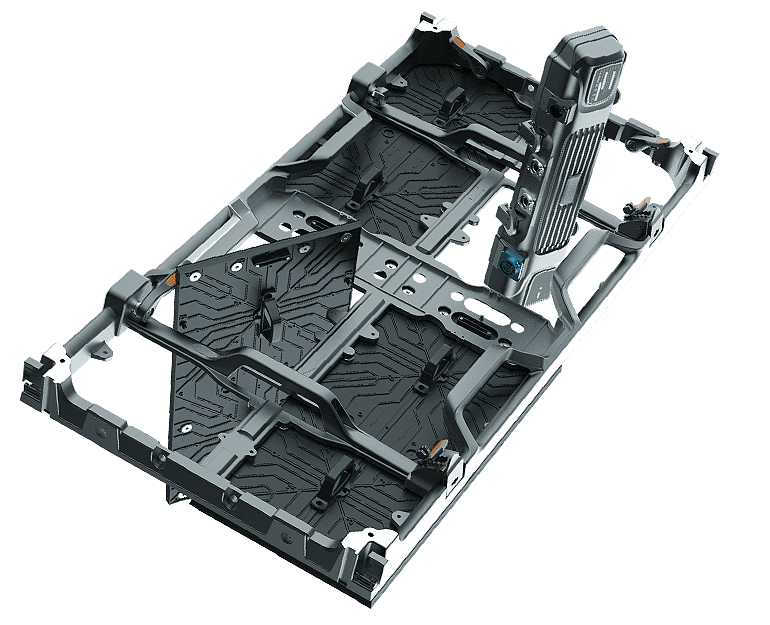

Corner Protection:
Protect modules
Anti-collision
Panel Size Compatibility:
500mm x 500mm/500mm x 1000mm
Panels compatible
Universal Hanging and Grounding Bar:
Hanging and stacking set up
Universal hanging and grounding bar
Hanging bars+truss=stacking
Parameters：
Parameter | Unit | HB2.6i | HB2.9i | HB3.9i | HB2.9 | HB3.9 | HB4.8 |
Pixel pitch | mm | 2.604 | 2.976 | 3.906 | 2.976 | 3.906 | 4.807 |
Brightness | nits | 1000 | 1100 | 1100 | 5000 | 5000 | 5000 |
Panel size | mm | 500*1000*85/500*500*85 | |||||
Pixel matrix per panel | 192x336/192x192 | 168x336/168x168 | 128x256/128x128 | 168x336/168x168 | 128x256/128x128 | 104x208/104x104 | |
Panel material | Die-casting Aluminum | ||||||
Panel weight | Kg | 12.4/8.3 | 12.4/8.3 | 12.4/8.3 | 12.6/8.2 | 12.6/8.2 | 12.6/8.2 |
Ingress protection (front/rear) | IP | 40/40 | 65/54 | ||||
Maintenance | Front access/rear access | ||||||
Download Center：
Application:
Retail Shops
Concerts
E-sports
Intelligent System
Rental In Events
